Docker & Kubernetes 101

Published at Dec 20, 2018 better viewed as a slideshow

#containers

Docker

Docker is a tool designed to make it easier to create, deploy, and run applications by using containers. Containers allow a developer to package up an application with all of the parts it needs, such as libraries and other dependencies, and ship it all out as one package. — OpenSource.com, What is Docker?

Infrastructure

Don’t worry about the system your application will ultimately run on.

Install Docker

Install at Docker’s getting-started

Setup Docker

First, ensure you are using an up-to-date docker engine. In the terminal,

Run docker info and check for any errors
Run docker --version and ensure you have version >=17.06

Setup Docker Resources

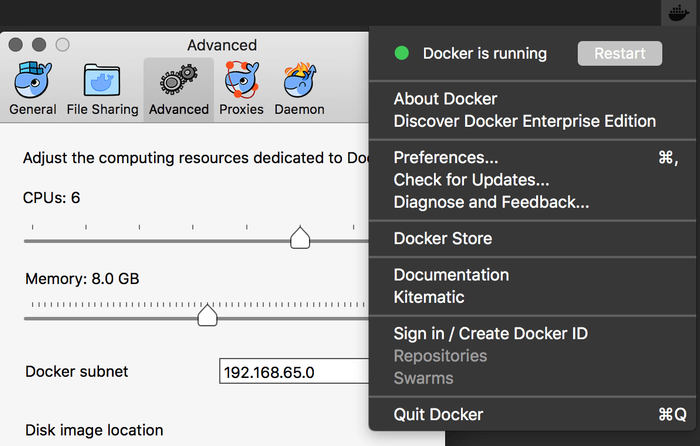

Ensure you have set enough resources for Docker to run smoothly: In the taskbar, click the whale icon → Preferences → Advanced

(I set 6 CPUs and 8GB RAM for Docker)

Settings

World Smallest Image

Every single Docker container begins as a pure vanilla Linux machine that knows nothing.

Where It All Begins

A Docker image consists of read-only layers each of which represents a Dockerfile instruction. The layers are stacked and each one is a delta of the changes from the previous layer.

Images start as a fresh, isolated machine and the very same dependencies get added to it. Every. Single. Time.

dockerfile

FROM scratch

ADD hello /

CMD ["/hello"]

Build your First Image

bash

docker build -t tiny-hello-world .
docker images

Run your First Container

bash

docker run tiny-hello-world
docker ps -a

Clean After Yourself

Delete a container:

bash

docker rm condescending_ptolemy

Next time, run container & delete after exit:

bash

docker run --rm tiny-hello-world

Advanced

Delete all stopped containers:

bash

docker container prune

Delete all dangling images:

bash

docker image prune

My First Containerized Node Application

I recommend Dockerfile documentation. It’s very well written.

Dockerfile

Node service:

Dockerfile

## creates a layer from the node:carbon Docker image
FROM node:8.14-alpine

## create the app directory for inside the Docker image
WORKDIR /usr/src/app

## copy and install app dependencies from the package.json (and the package-lock.json) into the root of the directory created above
COPY package*.json ./
RUN yarn install

## bundle app source inside Docker image
COPY . .

## expose port 8080 to have it mapped by Docker daemon
EXPOSE 3000

## define the command to run the app
CMD [ "yarn", "run", "start" ]

app.js

javascript

var express = require('express');
var app = express();

process.on('SIGINT', function () {
  process.exit();
});

app.get('/', function (req, res) {
  res.send("Hello World!
");
});

app.listen(3000, function () {
  console.log('Example app listening on port 3000!');
});

package.json

json

{
  "name": "docker-101-scene-02",
  "version": "1.0.0",
  "main": "index.js",
  "author": "Rafael Bodill",
  "license": "MIT",
  "scripts": {
    "start": "node app.js"
  },
  "dependencies": {
    "express": "^4.16.4"
  }
}

Let’s Build & Run

bash

docker build -t test-node .
docker run -it --rm test-node

On a new terminal:

bash

curl localhost:3000

Where’s my service? :(

Expose Ports to Host

bash

docker run -it --rm -p 3000:3000 test-node

On a new terminal:

bash

curl localhost:3000

Hooray!

Let’s Add a Route

Append to app.js:

javascript

app.get('/healthz', function (req, res) { res.send('OK') })

Rebuild image:

bash

docker build -t test-node .
docker run -it --rm test-node

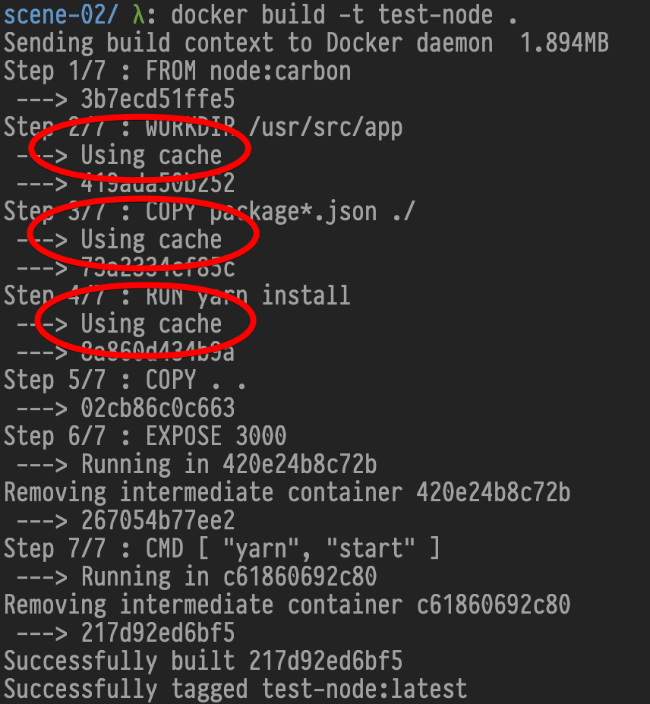

Docker Layer Caching

Docker Layers

bash

$ docker history test-node

IMAGE               CREATED          SIZE      CREATED BY
d17562ebd02e        27 minutes ago   0B        CMD ["yarn" "start"]
c24c2a8c7a2a        27 minutes ago   0B        EXPOSE 3000
001439668f54        27 minutes ago   1.78MB    COPY dir:0dc6500de44402cb2…
24e151c2462b        27 minutes ago   7.13MB    yarn install
9dd639668f68        27 minutes ago   226B      COPY file:b365e33dfa656564…
a93bcafb8a76        27 minutes ago   0B        WORKDIR /usr/src/app

.. Wait .. Our app.js is 1.78MB?

Ignoring Files

Create a .dockerignore file with:

txt

.git
.dockerignore
*.md
Dockerfile
node_modules

Rebuild image:

bash

docker build -t test-node .
docker history test-node

Now it’s better.

Linux Containers

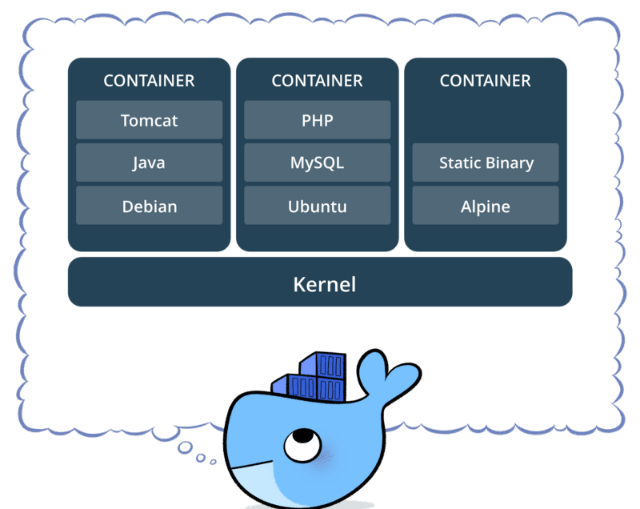

Images vs. Containers

Docker images are executable packages that include everything needed to run an application — the code, a runtime, libraries, environment variables, etc.

Docker containers are a runtime instance of an image — what the image becomes in memory when executed.

Examples of Docker containers. Each one comes from a specific Docker image.

Entering Container’s Shell

bash

docker run -d --name bob -p 3000:3000 test-node
docker exec -it bob sh

You are now INSIDE the ~~matrix~~ container!

bash

> netstat -ntulp
> wget -q -O- localhost:3000
> top
> free -m
> exit

Running Different Commands

bash

docker run --rm -it test-node sh
docker run --rm -it test-node ls -alp

View Container Information

bash

docker inspect bob | less
docker logs -f bob
docker stats bob

Manage State

bash

docker stop bob
docker start bob
docker restart bob
docker rm -f bob

Private Services

bash

docker run --rm -p 3000:3000 artifactory.local/myapp

Oh oh. What’s missing here?

Mount Volumes

Let’s mount our configuration from a different Git repository:

bash

git clone git@git.local:mycompany/myconfig.git

docker run --rm -v $PWD/myconfig:/etc/myapp
  -p 3000:3000 artifactory.local/myapp

Dog-gone it. What else are we missing?

Environment Variables

Oh. Our environment variable! It tells the configuration where to read from:

bash

docker run --name bob -v $PWD/myconfig:/etc/myapp
  -e MYAPP_CFG_ROOT=/etc/myapp -p 3000:3000
  artifactory.local/myapp

Viewing Logs

In a different terminal,

bash

docker logs -f bob
docker exec -it bob tail -f /var/log/myapp/api.log

Simplifying Workspaces

Docker Compose offers a number of benefits over the Docker CLI in all stages of development.

Essentially, what Docker Compose is, is a recipe card — it’s a recipe of services that make up an application and the docker-compose.yml dictates how the services are mixed together.

Simple Example

Let’s inspect our docker-compose.yml file:

yaml

version: "2"
services:

  myapp:
    image: artifactory.local/myapp
    environment:
      MYAPP_CFG_ROOT: /etc/myapp
    ports:
      - "3000:3000"
    volumes:
      - ./myconfig:/etc/myapp

Running Your Composition

bash

git clone git@git.local:mycompany/myconfig.git
docker-compose up

On a different terminal:

bash

curl localhost:3000

Let’s Add (3rd)Parties!

yaml

version: "2"
services:

  myapp:
    image: artifactory.local/myapp
    environment:
      MYAPP_CFG_ROOT: /etc/myapp
    ports:
      - "3000:3000"
    volumes:
      - ./myconfig:/etc/myapp

  redis:
    image: "redis:alpine"

Let’s run it:

bash

docker-compose up

Whoa!

Give me morrrre!

yaml

version: "2"
services:

  myapp:
    image: artifactory.local/myapp
    environment:
      MYAPP_CFG_ROOT: /etc/myapp
    ports:
      - "3000:3000"
    volumes:
      - ./myconfig:/etc/myapp

  redis:
    image: "redis:alpine"

  mysql:
    image: "mysql:5.7"
    environment:
      MYSQL_ROOT_PASSWORD: root

Let’s run it:

bash

docker-compose up

Access Services

bash

## Access MySQL:
docker exec -it scene-05_mysql_1 mysql -u root -p

## Access Redis:
docker exec -it scene-05_redis_1 redis-cli GET /

Kubernetes (K8S) 101

https://docs.google.com/presentation/d/1BhUfwkiRTQZsvN9kCpxpbT09kpWFTiuAprOfGemrf6Q

Workstation Setup

bash

brew uninstall --force bash-completion
brew install kubernetes-cli kubectx fzf stern bash-completion@2

Append to your ~/.bash_profile for awesome shell completion:

bash

if [ -f /usr/local/share/bash-completion/bash_completion ]; then
  . /usr/local/share/bash-completion/bash_completion
fi

Setup kubectl Context

Cluster + User = Context

bash

## Integration
kubectl config set-cluster foobar-int-developer --server=https://1.2.3.4:6443 --certificate-authority=$HOME/.kube/int/ca.pem
kubectl config set-credentials int-developer --client-certificate=$HOME/.kube/int/developer.crt --client-key=$HOME/.kube/int/developer.key
kubectl config set-context foobar-int-developer --cluster=foobar-int-developer --user=int-developer

## Staging
kubectl config set-cluster foobar-stg-developer --server=https://5.6.7.8:6443 --certificate-authority=$HOME/.kube/stg/ca.pem
kubectl config set-credentials stg-developer --client-certificate=$HOME/.kube/stg/developer.crt --client-key=$HOME/.kube/stg/developer.key
kubectl config set-context foobar-stg-developer --cluster=foobar-stg-developer --user=stg-developer

kctx

bash

kubectl config use-context foobar-int-developer
kctx
kctx foobar-int-developer
kctx foobar-stg-developer

kubectl Cheat-sheet

bash

kubectl get namespaces
kubectl get deploy
kubectl get -n ingress-nginx deploy
kubectl get -n kube-system deploy
kubectl get --all-namespaces deploy
kubectl get pods -w
kubectl get pods -o wide
kubectl get events

kubectl get pods,svc,deploy
kubectl describe deploy push-service
kubectl top node
kubectl top pods
kubectl logs -f deploy/trips
kubectl logs -f deploy/trips -c trips
kubectl logs --previous trips-7d7f649996-nz876
kubectl exec -it trips-6c6887547d-lhbsb -- tail -f /var/log/myapp/api.log

Examining Deployed Objects

bash

kubectl get deploy
kubectl get pod
kubectl get svc
kubectl get deploy,pod,svc | grep myapp
kubectl get all | grep myapp

Describe Deployment

bash

kubectl describe deploy myapp
kubectl describe pod myapp-649887b547-fh7vw
kubectl top pod | grep myapp

Analyze Logs

bash

kubectl logs -f myapp-649887b547-fh7vw
kubectl exec -it myapp-649887b547-fh7vw -- tail -f /var/log/myapp/api.log

Jump into Container

bash

$ kubectl exec -it myapp-649887b547-fh7vw sh
> top
> free -h
> exit
